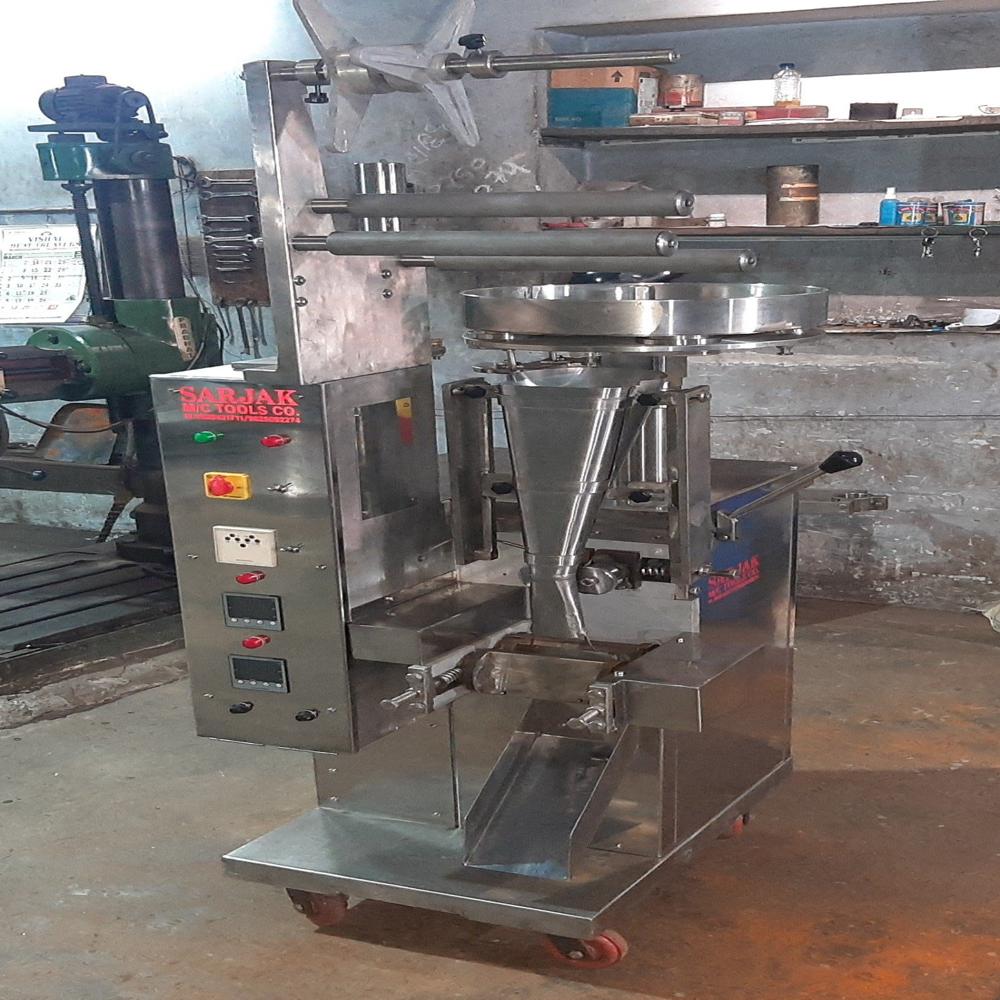

Liquid Pouch Packing Machine

Liquid Pouch Packing Machine Specification

Power Supply
15 AMP

Application
PACKING ANY LIQUID IN POUCH

Filling Range
1 TO 100 ML WITH DIFFERENT TYPE OF MODEL

Noise Level
2 db

Type
Packaging Line

Material
S S

Feature
Highly Efficient, Less Power Consumable, Heavy Duty Machine

Auxiliary Packaging Machine Type
Other

Capacity
2500 Pcs/hr

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Pneumatic

Power
1.5 Horsepower (HP)

Voltage
230 Volt (v)

Weight (kg)
350 Kilograms (kg)

Dimension (L*W*H)
3 x 3 x 7 Foot (ft)

Color
White

Warranty
1 YEAR

Sealing Type
Other

Liquid Pouch Packing Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
15 Days

About Liquid Pouch Packing Machine

Pneumatic Form Fill N Seal Machine

The Pneumatic Operated Form Fill & Seal (FFS) Machine is a reliable, semi-automatic to fully automatic packaging solution that forms pouches, fills products, and seals them using pneumatic-driven sealing mechanisms. Designed for medium-speed production, it is ideal for powders, granules, and other free-flow products, delivering consistent pouch quality with minimal maintenance

Application:
Powders: Spices, flour, ORS, milk powder, chemical powders, detergent powder, and more.
Liquids & Pastes: edible oil, shampoo, lotion, sauces, gels, cleaners, and more.
Granules / Free-Flow Products: Sugar, grains, seeds, tea, coffee, dry fruits, and more.
Small Pack Packaging: Ideal for single-use sachets, center-seal, three-side-seal, and four-side-seal pouches.
Industries: Food & beverage, pharma, cosmetics, chemical, agro, and household products.

Technical Specification:-

Specification	Details / Range
Operation Mode	Pneumatic Driven High-pressure sealing using air cylinders
Control System	PLC Based with Touch HMI (user-friendly operation & recipe storage)
Packing Range	5 g 250 g (depends on product & dosing system)
Pouch Type	Center Seal, Three Side Seal, Four Side Seal
Pouch Length	50 250 mm (adjustable)
Pouch Width	50 300 mm (based on forming collar)
Film Material	Heat-sealable laminated films
Filling System	Volumetric Cup Filler / Auger Filler / Liquid Piston Filler
Sealing System	Pneumatic sealing jaws (vertical & horizontal) with PID temperature control
Packing Speed	20 80 pouches/min (depending on product & pouch size)
Air Requirement	6 bar (0.6 MPa) clean, dry air
Air Consumption	0.3 0.6 m/min
Power Requirement	230V / 415V, 50 Hz (Single/Three Phase)
Power Consumption	2 4 kW
Machine Dimensions	Approx. 900 800 1800 mm
Machine Weight	300 450 kg
Optional Features	Batch/date printing, nitrogen flushing, tear notch, hole punch, adjustable pouch size, Strip Batch Cutting.
