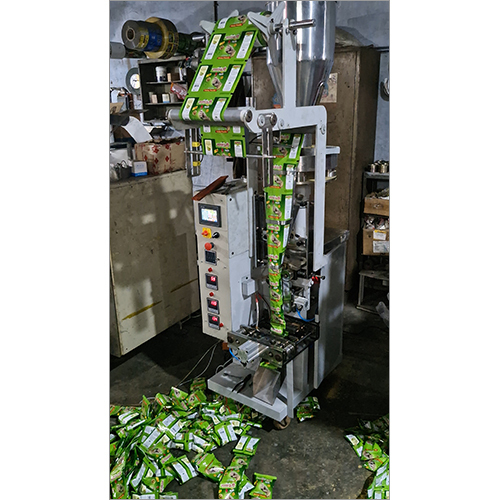

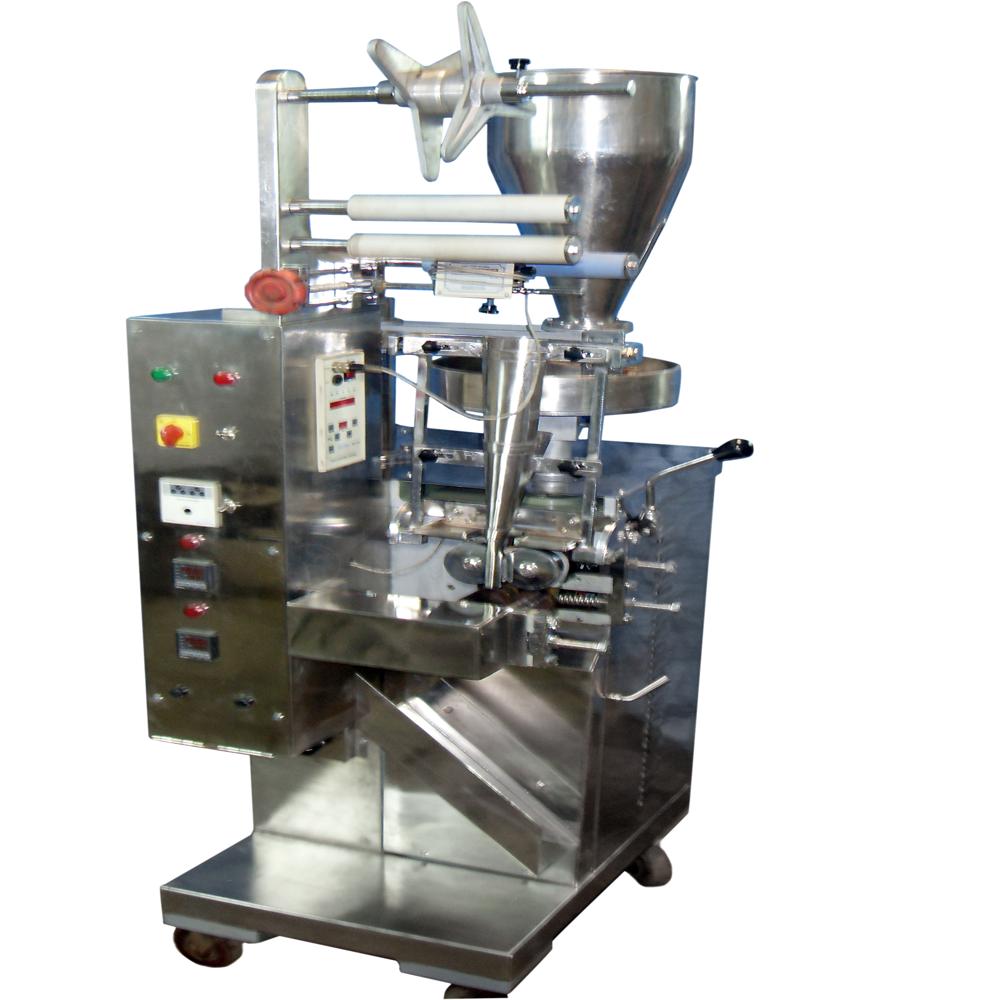

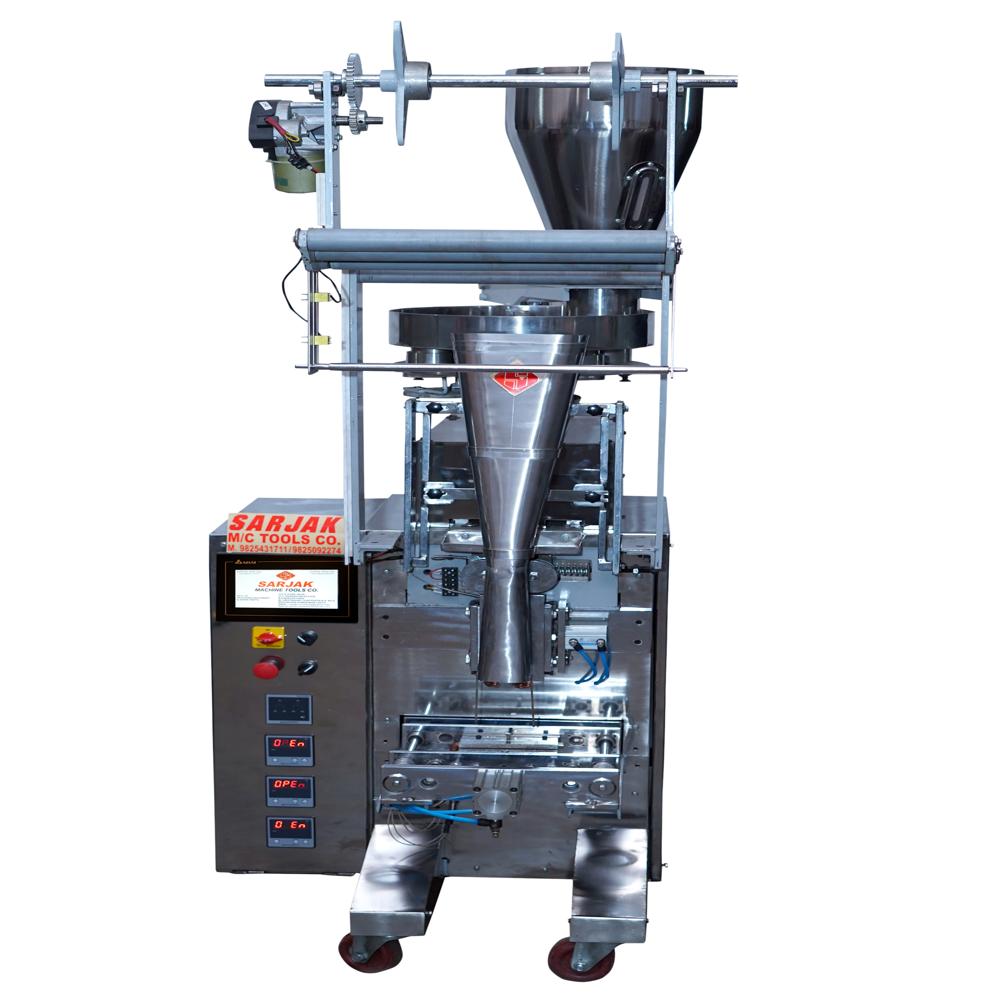

Automatic Granules Pouch Packing Machine

Automatic Granules Pouch Packing Machine Specification

Noise Level
2 db

Filling Range
10 to 1000 Grams with Different type of Model 10 to 1000 Grams

Power Supply
230 V AC

Application
all type of Granules and powder packing

Type
Packaging Line

Material
M.S. / S.S

Feature
Highly Efficient, Less Power Consumable, Heavy Duty Machine, Durable, Rust Proof

Auxiliary Packaging Machine Type
Other

Capacity
2500 Pcs/hr

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Pneumatic

Power
1 Horsepower (HP)

Voltage
230 Volt (v)

Weight (kg)
400 Kilograms (kg)

Dimension (L*W*H)
3X3X7 Foot (ft)

Color
White

Warranty
1 year

Sealing Type
Heat Sealing

Automatic Granules Pouch Packing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
any port of gujarat

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

Packaging Details
Wooden Box

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
MSME IEC

About Automatic Granules Pouch Packing Machine

Pneumatic Form Fill N Seal Machine

The Pneumatic Operated Form Fill & Seal (FFS) Machine is a reliable, semi-automatic to fully automatic packaging solution that forms pouches, fills products, and seals them using pneumatic-driven sealing mechanisms. Designed for medium-speed production, it is ideal for powders, granules, and other free-flow products, delivering consistent pouch quality with minimal maintenance

Application:
Powders: Spices, flour, ORS, milk powder, chemical powders, detergent powder, and more.
Liquids & Pastes: edible oil, shampoo, lotion, sauces, gels, cleaners, and more.
Granules / Free-Flow Products: Sugar, grains, seeds, tea, coffee, dry fruits, and more.
Small Pack Packaging: Ideal for single-use sachets, center-seal, three-side-seal, and four-side-seal pouches.
Industries: Food & beverage, pharma, cosmetics, chemical, agro, and household products.

Technical Specification:-

Specification	Details / Range
Operation Mode	Pneumatic Driven High-pressure sealing using air cylinders
Control System	PLC Based with Touch HMI (user-friendly operation & recipe storage)
Packing Range	5 g 250 g (depends on product & dosing system)
Pouch Type	Center Seal, Three Side Seal, Four Side Seal
Pouch Length	50 250 mm (adjustable)
Pouch Width	50 300 mm (based on forming collar)
Film Material	Heat-sealable laminated films
Filling System	Volumetric Cup Filler / Auger Filler / Liquid Piston Filler
Sealing System	Pneumatic sealing jaws (vertical & horizontal) with PID temperature control
Packing Speed	20 80 pouches/min (depending on product & pouch size)
Air Requirement	6 bar (0.6 MPa) clean, dry air
Air Consumption	0.3 0.6 m/min
Power Requirement	230V / 415V, 50 Hz (Single/Three Phase)
Power Consumption	2 4 kW
Machine Dimensions	Approx. 900 800 1800 mm
Machine Weight	300 450 kg
Optional Features	Batch/date printing, nitrogen flushing, tear notch, hole punch, adjustable pouch size, Strip Batch Cutting.
